2018 NITA Pressure Sensitive Labeler XP400T

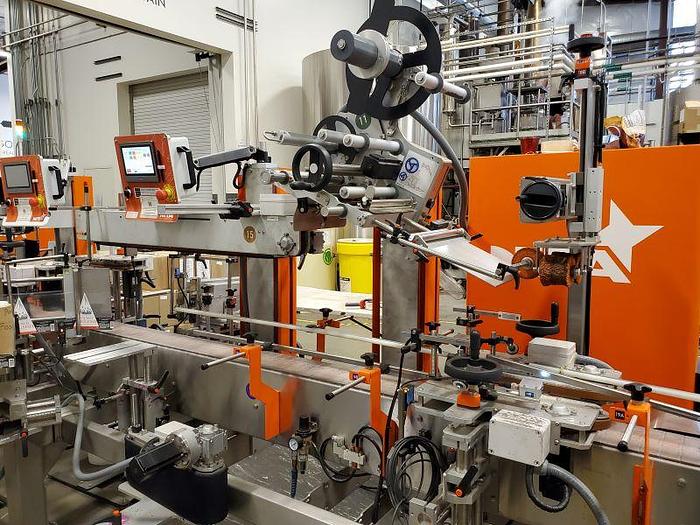

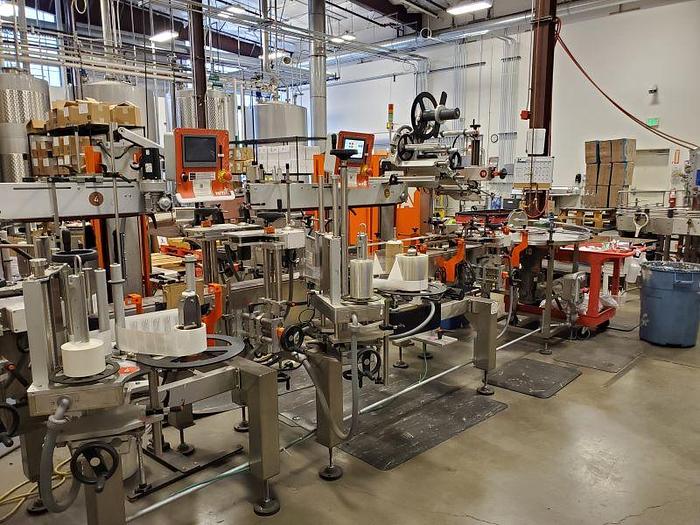

Item is a used NITA model XP400T, front/back and top, pressure sensitive labeler. The machine is divided into two modules. The first has #3 and #4 labeling heads as well as a top hold down belt with container aligners prior to the hold down belt. There is a bottle rotating mechanism prior to the bottle aligners. This section of the machine is designed for front/back, flat panel label application. The second module is designed for front/back label application on cylinder bottles. It is also set up to apply a tamper strip label to the top and neck of the bottle. It is set up with a wrap belt.and backing plate, as well as a three point pinch application mechanism allowing for both front back label application and full wrap application. It is capable of front/back application of 1.75 liter bottles registered to the handle. This machine is equipped with high speed servo motors which allow for for precise recipe replication. There are no PLC's, micro-processor boards, or stepper motors. It is equipped with a self diagnosing software system with in-screen parts ordering. Non-proprietary "off the shelf" electronics. It is capable of high speed application speeds of up to 1570"/minute. All four labeling heads are capable of applying a 10" tall label and the machine can take label rolls up to 16" in diameter. Power requirement is 208/220 volt/3-phase. Previous use was in a distillery running at approximately 30-35 BPM.
