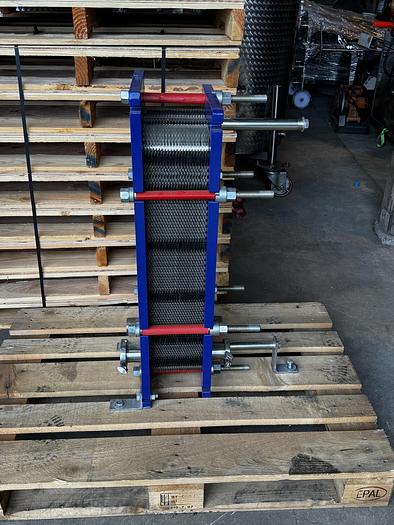

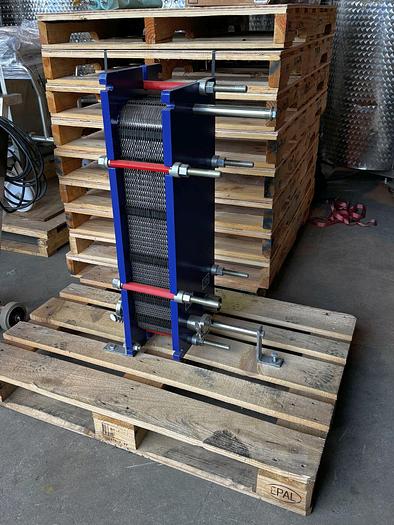

Used CPE 60H heat exchanger

Used CPE stainless steel heat exchanger - This unit was manufactured in 2016 but has soon limited use in a cider manufacturing facility but would be well suited for coider, brewery or other beverage use. The CPE60H plate heat exchanger is made for cooling wort from 200 F to 70 F using city water at around 50 F. This heat exchanger is designed so that the discharged water is hot enough to put into your HLT for your next brew. They are designed to cool a batch in approximately 30 minutes.

Frame Material: Carbon Steel

Surface Area: From 34 ft² to 177 ft²

Plates: 0.5mm 316ss

Gaskets: EPDM clip on gaskets

Design: Three pass flow pattern

Connections: 2" Water connections X 2" Tri-Clamp Wort connections
