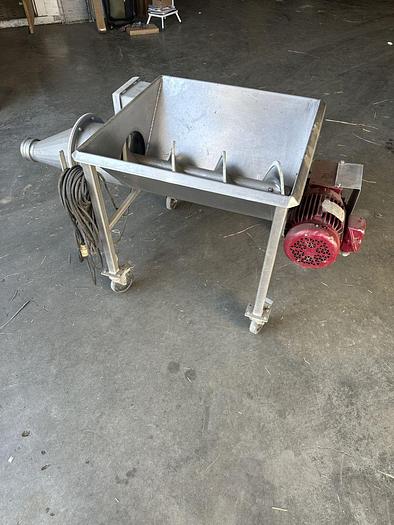

Used Carlsen and Associates Screw Sump

Item is a used Carlsen screw sump designed to mate to the Carlsen 220 or 320 pump (pump not included). Carlsen states -

These screw pumps for the Carlsen 220 and 320 are portable and sit under discharge of the destemmer-crusher. The start/stop on the screw sump will coordinate with the must pump control so that starting and stopping the sump will also start and stop the must pump. This screw sump for the Carlsen 220 and 320 will pump whole cluster whites to the press, increasing the press's loading capacity.

Construction

• 1-1/2" square tube stainless steel frame
• 12 gauge stainless steel body
• Stainless steel casters with brakes

Screw Conveyor

• 12" diameter stainless steel conveyor screw
• Seal-welded on both sides of screw
• UHMW flight edging

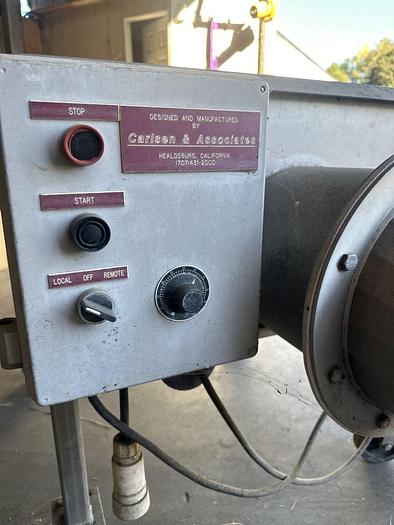

Electrical Controls

• Variable frequency drive
• Waterproof enclosure and switches
• Forward/Reverse switch
• Panel mounted speed control
• Pigtail for utilizing remote stop/start devices
• 50' of power cord (the electrical plug is to be supplied by the customer)
• 10' of cord for connection to the must pump control for stop/start devices
