Used 5bbl Direct Fired Brewhouse

Used 5bbl Direct Fired Brewhouse

Location:Portland, OR

Available quantity:1

orCall (503) 222-7079

Description

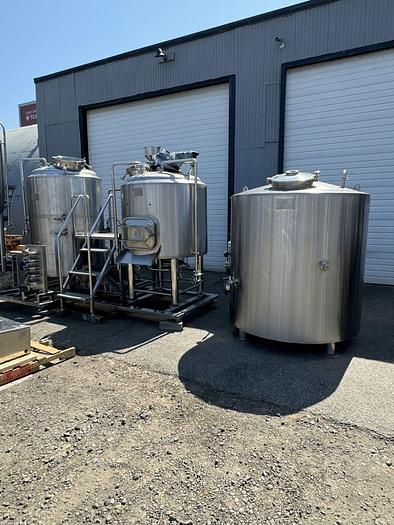

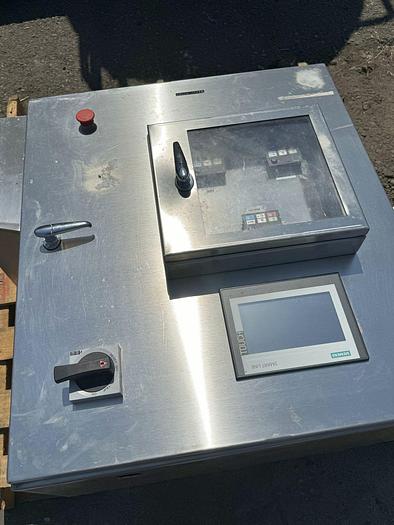

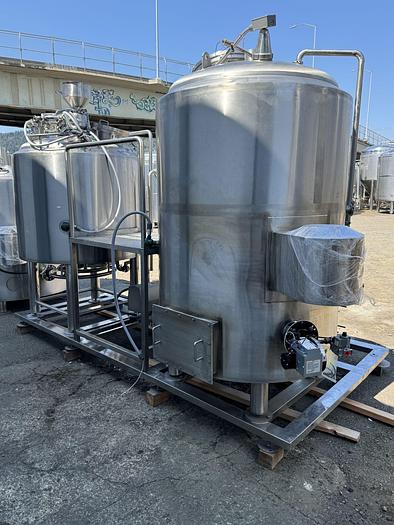

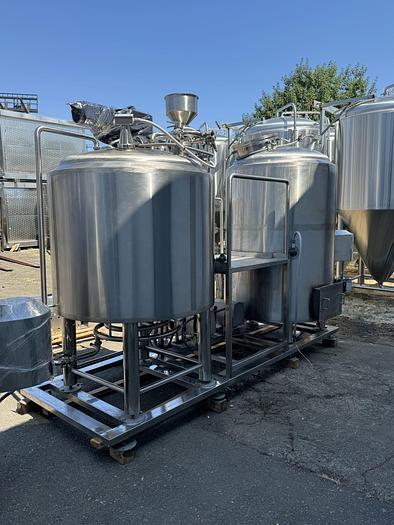

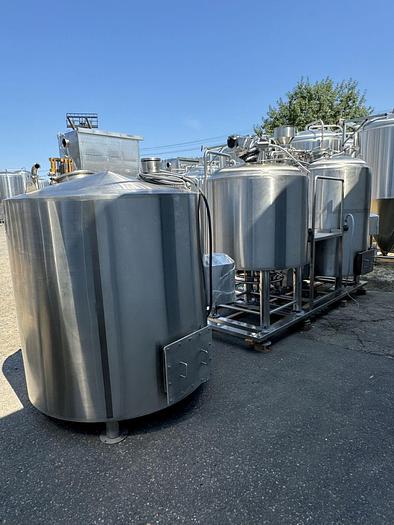

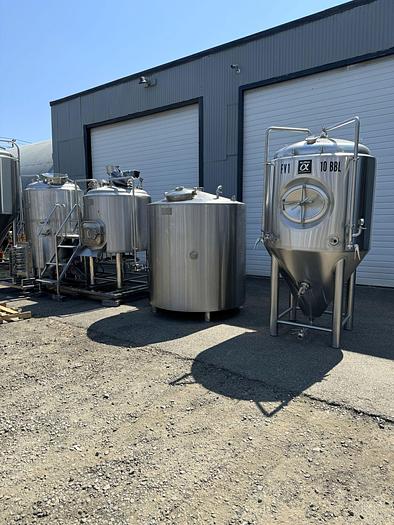

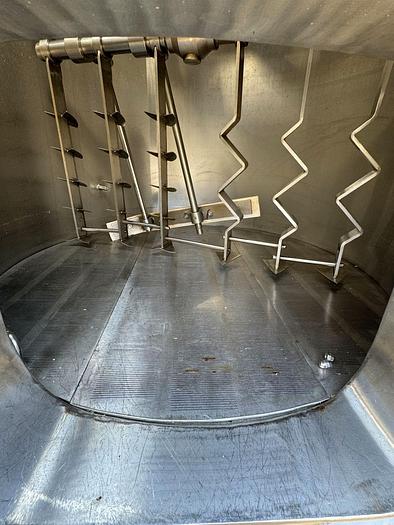

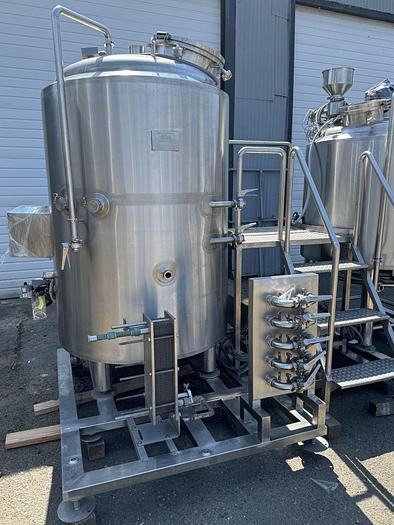

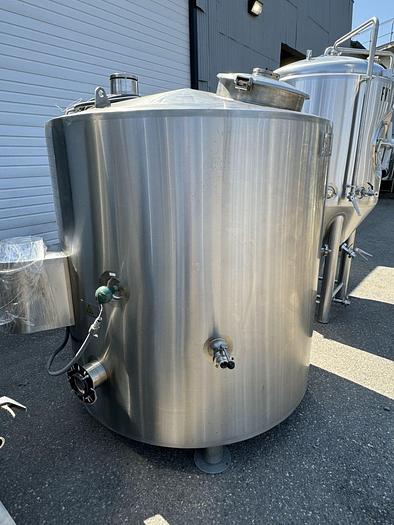

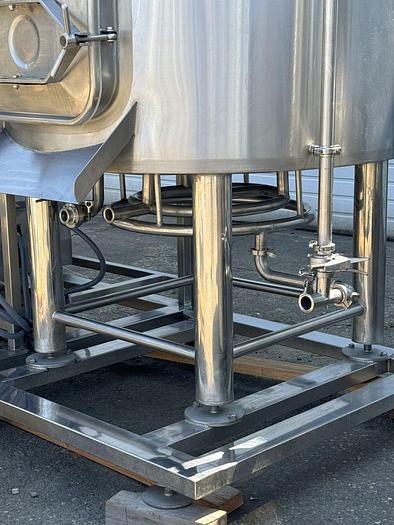

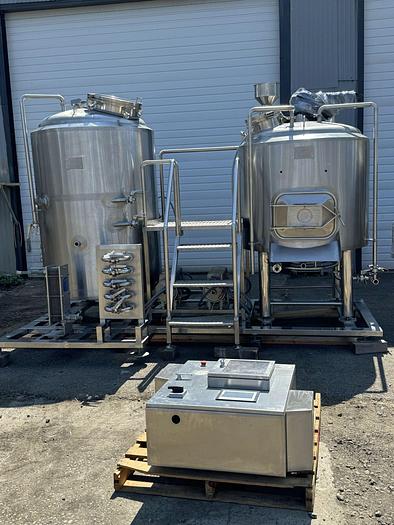

Item is a used 5 bbl direct fired skid mounted brewhouse that was manufactured in approximatley 2018. The system is designed with a 5bbl MLT on the right side of the skid and the 5 bbl BKWP on the left side of the skid. The skid measures approx 6' deep x 12' long x 100" tall. There is a seperate direct fired 10 bbl HLT that measures 6' diameter x 82" tall. The kettle and HLT are each heated with midco economite ec200 burners. The mlt is insulated and stainless clad with wedgewire fale bottom, motorized rake with drop down arm for pushing spent grain out of the tank. There is an underside ring for multiport bottom draw off as well as an underside cip ring. The MLT is outfitted with a grist hydrator. The MLT and BKWP both have clear top manway doors. The HLT is outfitted with a top manway and overflow protection. Both the BKWP and HLT have closed fireboxes with firebox vent. The brewhouse is mounted on a skid with an integrated diverter panel, thermaline heat ex, and two washdown brewhouse pumps. There is a brewhiuse control panel that will be included as well.

Specifications

Model5bbl DF
Year2018
ConditionUsed
Stock Number8316
