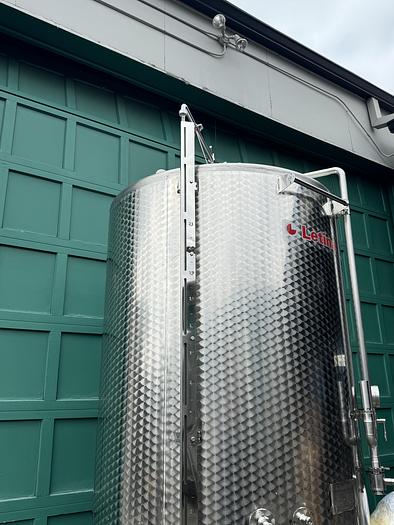

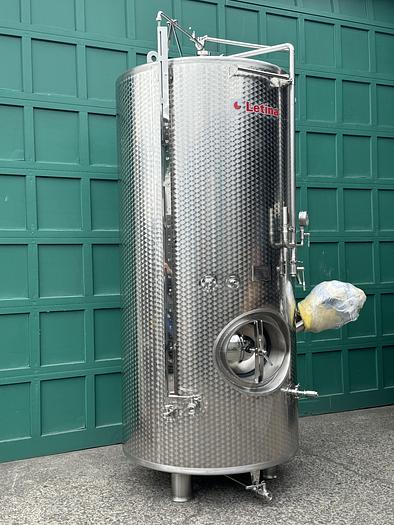

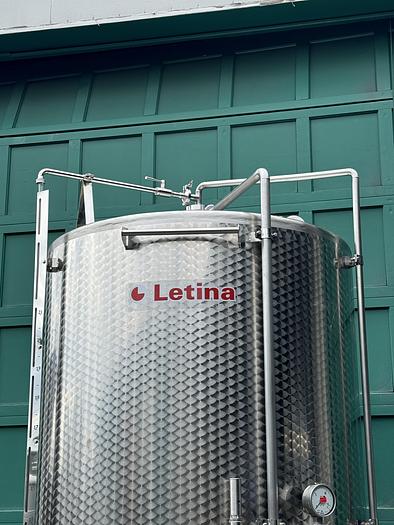

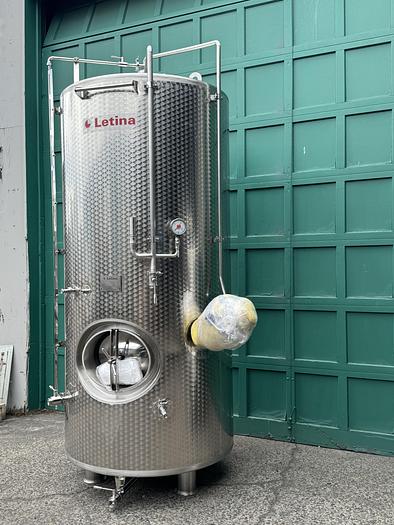

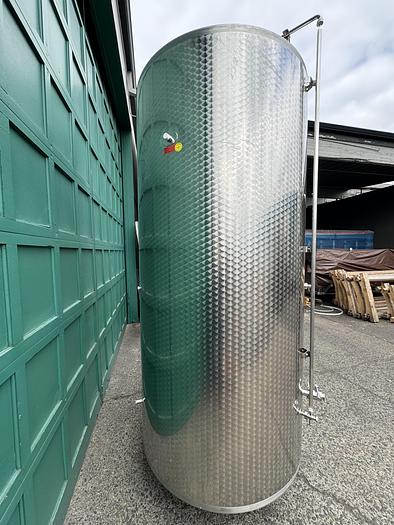

New Stock Letina T2100L / 555 Gal High Pressure Fermenter/Storage Tank

Item is a Letina high pressure jacketed tank rated at 6 bar operating pressure. The tank is oufitted with jacket and insulation/cladding along with a side mounted agitator. Specifications are as follows:

— volume approx. 2100 lit

— coat diameter 1118 mm, height 2000 mm

— insulator diameter 1238 mm, height 2100

— total height approx. 3000 mm

— 3 legs, height 500 mm, closed

— dished bottom and top

— working pressure max. 6 bar

— insulation 60 mm, PU foam

— stainless steel clad

— fitting on top

— CIP pipe with spray ball

— ladder support

— type plate with note card

— thermometer, analog

— sample tap, DIN 15

— manometer

— security valve

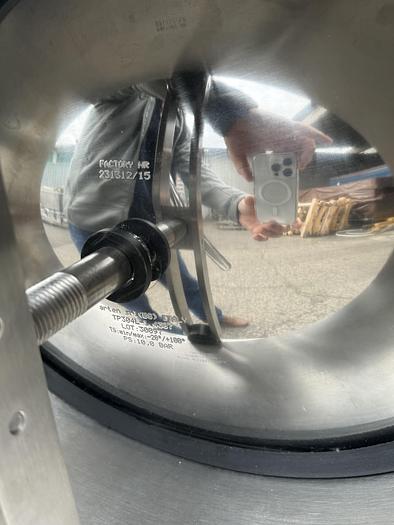

— manway door, oval

— level indicator, dia. 16 mm, scaled, closed

— cooling jacket, 2.1 m2, max. 2.5 bar

— thermowell

— ball valve, tri-clamp 1.5", with carbonation stone

— partial discharge, ball valve, tri-clamp 1.5"

— total discharge, ball valve, tri-clamp 1.5"

— fixed stirrer, 0.75 kW, 1400 rpm

— material AISI 304, BA, mirror inside, circle brushed outside

— packaging
