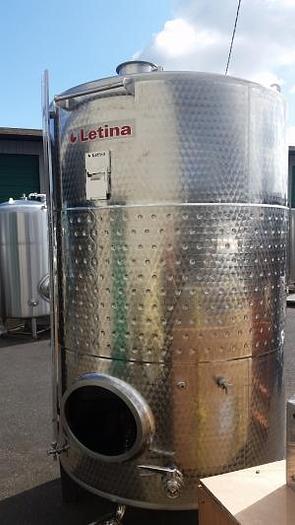

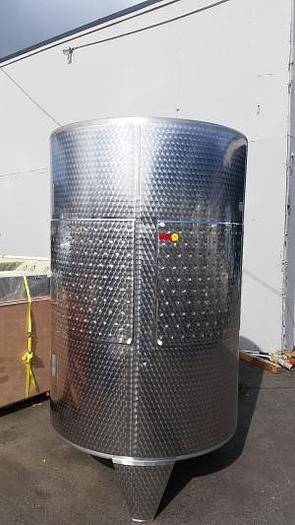

New Stock Letina 845Gal/3200L Closed Top Jacketed Storage Tank

New Stock Letina 845Gal/3200L Closed Top Jacketed Storage Tank

Location:Portland, OR

orCall (503) 222-7079

Description

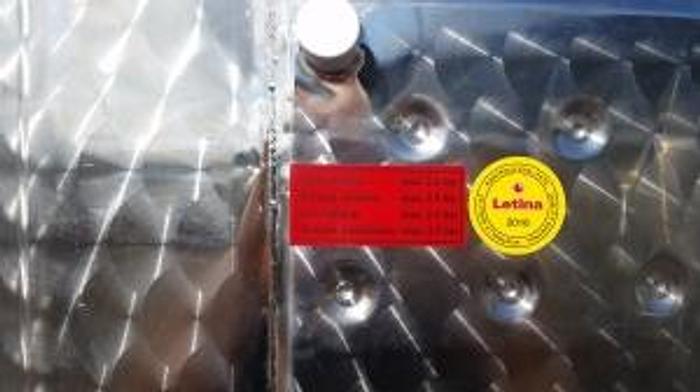

New Stock Letina 3200 L (845gal) jacketed closed top tank. - volume approx. 3200 lit - coat diameter 1402 mm, height 2000 mm - total height approx. 2750 mm - 3 legs, height 400 mm, opened - conical off-centered bottom and top - manhole cover, dia. 200 mm - breath valve, DIN 50 - ladder support - type plate with note card - thermometer, analog - sample tap, DIN 15 - level indicator, dia. 16 mm, scaled - manway door, oval 440 x 340 mm, type CL - cooling jacket, 1.6 m2, max. 2.5 bar - thermowell - partial discharge, butterfly valve, tri-clamp 2" - total discharge, butterfly valve, tri-clamp 2" - material AISI 304, BA, mirror inside, circle polished outside Price is per tank.

Specifications

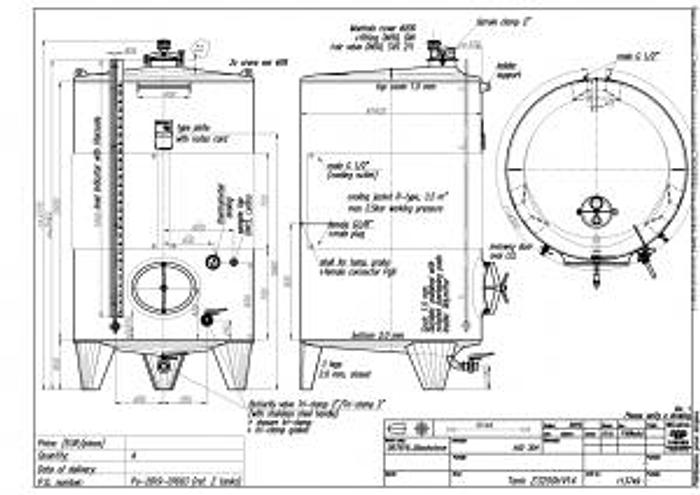

ModelZ3200HV14
ConditionNew
Stock Number6754
