Accumulation Disk 48 Inch

Accumulation Disk 48 Inch

Location:Portland, OR

orCall (503) 222-7079

Description

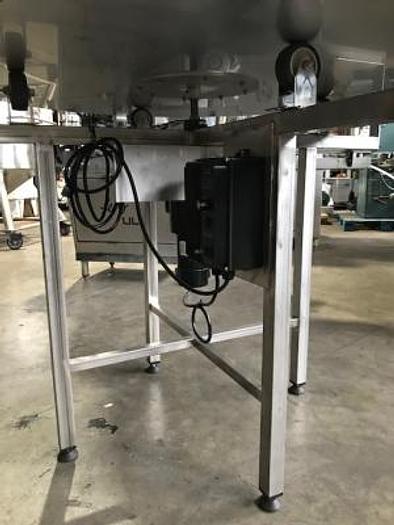

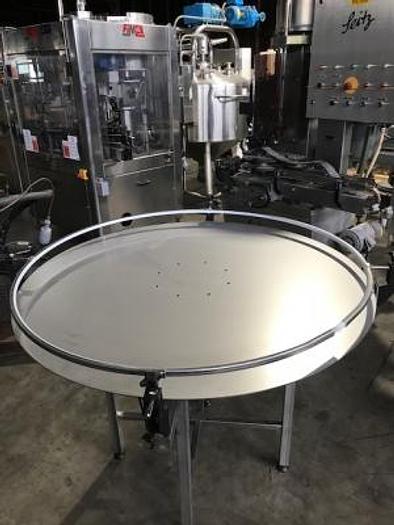

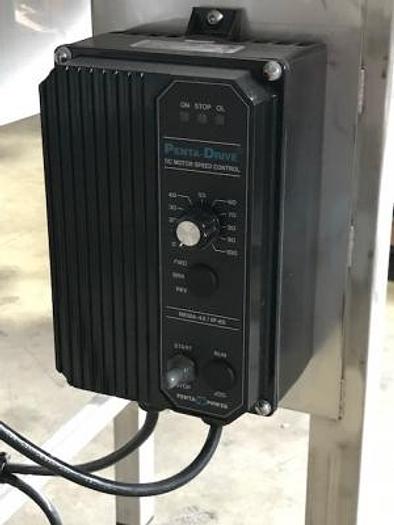

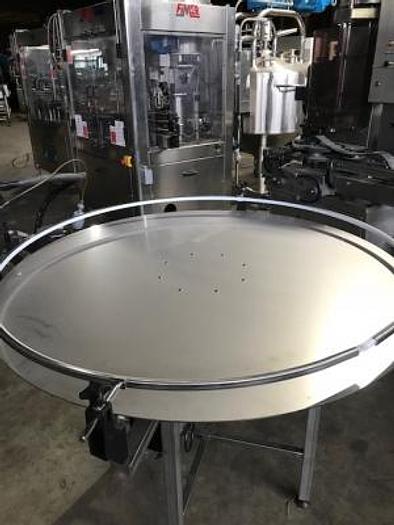

NEW 47 1/2 inch unscramble/accumulation disk. The disk is of heavy duty construction utilizing a stainless steel disk with a 3/16 inch SS support disk. The frame is also stainless steel and constructed of 1 1/2 inch square tubing. The motor is a 1/4 HP single phase, 110 volt DC motor for variable speed. The output ratio of the gearhead on the motor is 180:1. The DC controller is a \\\'NEMA 4\\\' washdown. The outer edge of the disk is supported with four (4) hard rubber casters, which are ball bearing mounted. It is equipped with a single guide rail made with \\\'value Guide\\\' components.

Specifications

Model48 inch
ConditionNew
Stock Number3292
